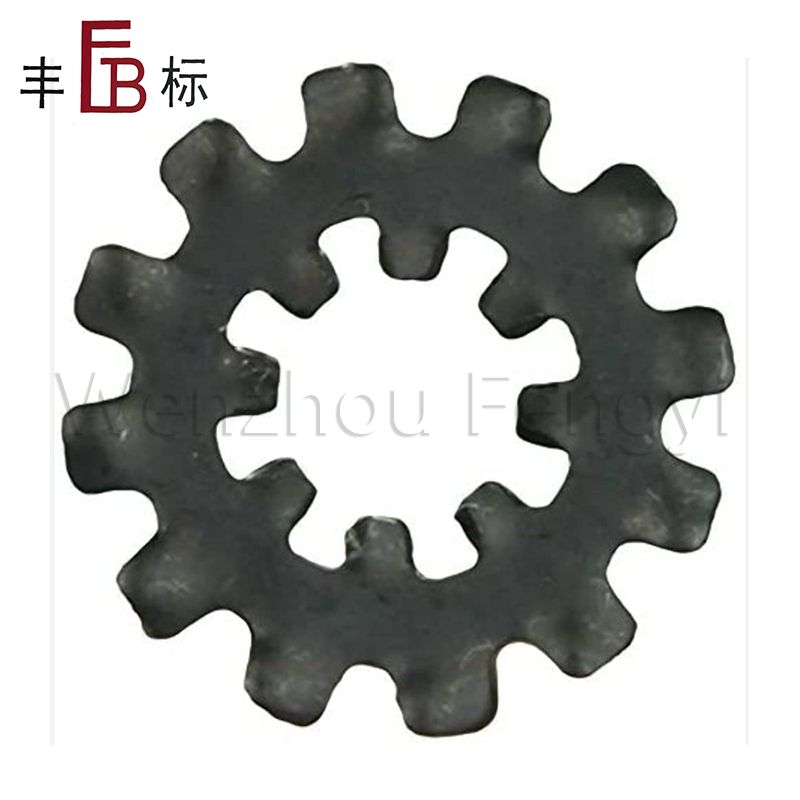

DIN 6797 Black External Internal Lock Washers

If you are looking to purchase DIN 6797 black external internal lock washers in any quantity, please consider Fengyi for your direct purchasing needs. Our team will be happy to help you choose the most suitable DIN 6797 black external internal lock washers. We will be your source for quality fastening products at factory prices.

Send Inquiry

Product Description

DIN 6797 Black External Internal Lock Washers have a large load-bearing surface and can span oversized and elongated holes. Teeth on both sides allow the washers to also serve as inserts between the two adjustable pieces to maintain their position after original setting.

Combination Tooth Internal-External Lock Washers(ASME B18.21.12009)
Nominal Washer Size		A		B		C
		Inside Diameter (ID)		Outside Diameter*(OD)		Thickness (TH)
		Max	Min	Max	Min	Max	Min
4	0.112	0.123	0.115	0.475	0.460	0.021	0.016
6	0.138	0.150	0.141	0.510	0.495	0.028	0.023
8**	0.164	0.176	0.168	0.506	0.494	0.028	0.023
8	0.164	0.176	0.168	0.610	0.580	0.034	0.028
10	0.190	0.204	0.195	0.610	0.580	0.034	0.028
1/4	0.250	0.267	0.256	0.760	0.725	0.040	0.032
5/16	0.312	0.332	0.320	0.900	0.865	0.040	0.032
3/8	0.375	0.398	0.384	0.985	0.965	0.045	0.037
7/16	0.438	0.464	0.448	1.070	1.045	0.050	0.042
1/2	0.500	0.530	0.512	1.260	1.220	0.055	0.047
5/8	0.625	0.663	0.640	1.410	1.380	0.060	0.052
