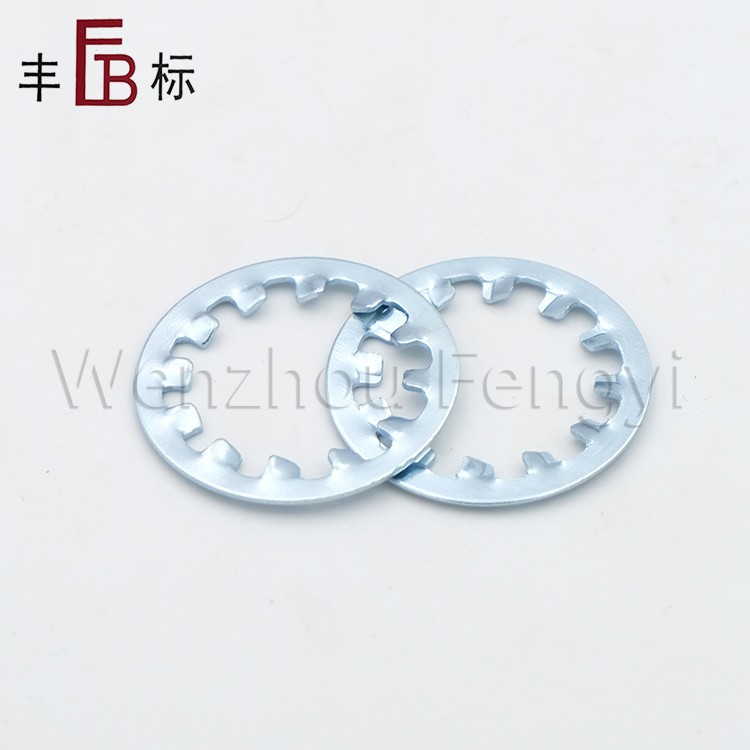

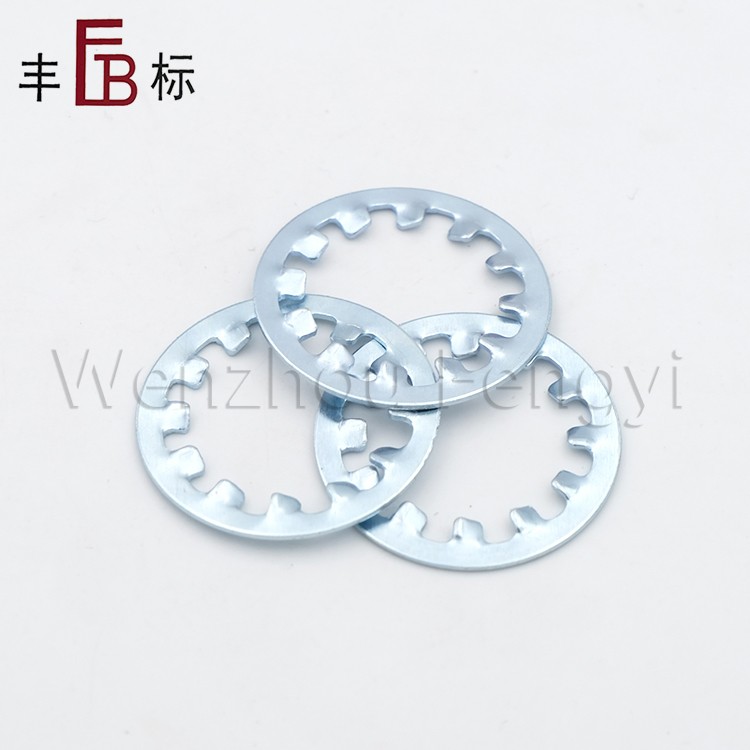

As a professional supplier, Wenzhou Fengyi not only provides standard specifications of DIN 6797J Zinc Plated Internal Lock Washers, but can also customize products of various non-standard sizes and materials according to customer requirements to meet the individual needs of different customers. We have advanced production equipment and technical teams to ensure product quality and delivery cycle, and provide customers with efficient and convenient customized services.
| DIN6797-J | ||||||
|
|
d |
|
dc |
|
h | min |
|
|
min | max | min | max |
|
|
| M2 | 2.2 | 2.34 | 4.2 | 4.5 | 0.3 | 6 |
| M2.5 | 2.7 | 2.84 | 5.2 | 5.5 | 0.4 | 6 |
| M3 | 3.2 | 3.38 | 5.7 | 6 | 0.4 | 6 |
| M3.5 | 3.7 | 3.88 | 6.64 | 7 | 0.5 | 6 |
| M4 | 4.3 | 4.48 | 7.64 | 8 | 0.5 | 8 |
| M5 | 5.3 | 5.48 | 9.64 | 10 | 0.6 | 8 |
| M6 | 6.4 | 6.62 | 10.57 | 11 | 0.7 | 8 |
| M7 | 7.4 | 7.62 | 12.07 | 12.5 | 0.8 | 8 |
| M8 | 8.4 | 8.62 | 14.57 | 15 | 0.8 | 8 |
| M10 | 10.5 | 10.77 | 17.57 | 18 | 0.9 | 9 |
| M12 | 13 | 13.27 | 19.98 | 20.5 | 1 | 10 |
| M14 | 15 | 15.27 | 23.48 | 24 | 1 | 10 |
| M16 | 17 | 17.27 | 25.48 | 26 | 1.2 | 12 |
| M18 | 19 | 19.33 | 29.48 | 30 | 1.4 | 12 |
| M20 | 21 | 21.33 | 32.38 | 33 | 1.4 | 12 |
| M22 | 23 | 23.33 | 35.38 | 36 | 1.5 | 14 |
| M24 | 25 | 25.33 | 37.38 | 38 | 1.5 | 14 |
| M27 | 28 | 28.33 | 43.38 | 44 | 1.6 | 14 |
| M30 | 31 | 31.39 | 47.38 | 48 | 1.6 | 14 |
