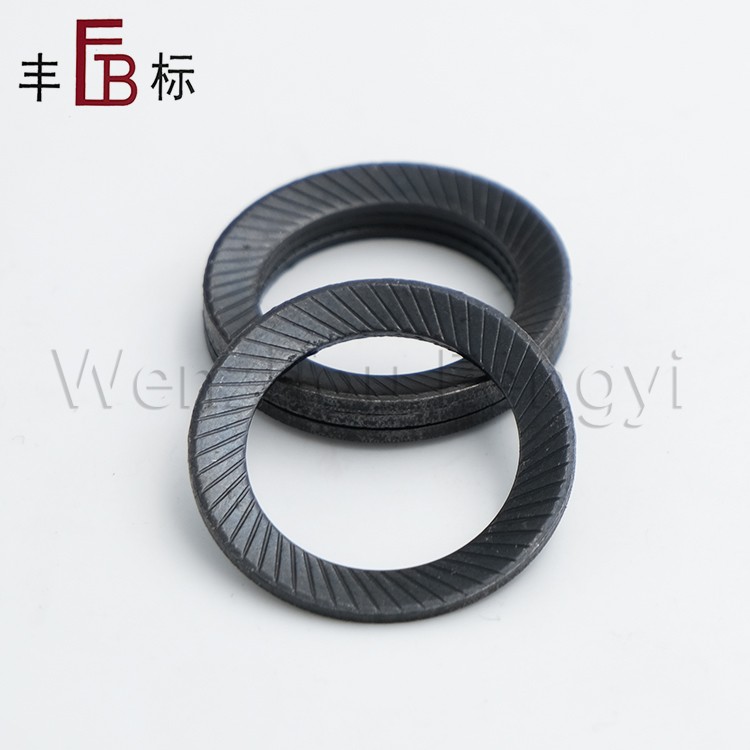

Wenzhou Fengyi has been focusing on special fasteners and high-precision parts for many years. Our DIN 9250S VS zinc plated safety lock washers have good quality and price advantages. We look forward to becoming your long-term partner in China. As a professional manufacturer of fasteners and high-precision parts, we are willing to provide you with high-quality, factory-priced safety lock washers. We will provide you with the best after-sales service and timely delivery.
DIN9250-VS | |||||
Size | d | dc | H | h | |
|
|
|
min | max |
|
M5 | 5.3 | 9 | 0.94 | 1.3 | 1 |
M6 | 6.4 | 10 | 0.94 | 1.4 | 1 |
M8 | 8.4 | 13 | 1.14 | 1.7 | 1.2 |
M10 | 10.5 | 16 | 1.5 | 2.01 | 1.5 |
M12 | 13 | 18 | 1.55 | 2.11 | 1.5 |
M14 | 15 | 22 | 1.65 | 2.21 | 2 |
M16 | 17 | 24 | 2.06 | 2.59 | 2 |
M18 | 19 | 27 | 2.16 | 2.69 | 2 |
M20 | 21 | 30 | 2.11 | 2.79 | 2 |
M22 | 23 | 33 | 2.31 | 3 | 2 |
M24 | 25.6 | 36 | 2.69 | 3.4 | 2.5 |
M27 | 28.6 | 39 | 2.79 | 3.51 | 2.5 |
DIN9250-S | |||||
Size | d | dc | H | h | |
|
|
|
min | max |
|
M1.6 | 1.7 | 3.2 | 0.55 | 0.75 | 0.5 |
M2 | 2.2 | 4 | 0.55 | 0.75 | 0.5 |
M2.5 | 2.7 | 4.8 | 0.55 | 0.95 | 0.5 |
M3 | 3.2 | 5.5 | 0.55 | 0.95 | 0.5 |
M3.5 | 3.7 | 6 | 0.75 | 1.15 | 0.7 |
M4 | 4.3 | 7 | 0.75 | 1.2 | 0.7 |
M5 | 5.3 | 9 | 0.75 | 1.2 | 0.7 |
M6 | 6.4 | 10 | 0.75 | 1.2 | 0.7 |
M6.35 | 6.7 | 9.5 | 0.75 | 1.2 | 0.7 |
M8 | 8.4 | 13 | 1.2 | 1.6 | 1 |
M10 | 10.5 | 16 | 1.1 | 1.6 | 1 |
M11.1 | 11.6 | 15.9 | 1.3 | 1.85 | 1.3 |
M12 | 13 | 19 | 1.3 | 1.85 | 1.3 |
M12.7 | 13.7 | 19 | 1.4 | 1.95 | 1.3 |
M14 | 15 | 22 | 1.65 | 2.3 | 1.5 |
M16 | 17 | 24 | 1.75 | 2.3 | 1.5 |
M18 | 19 | 27 | 2.05 | 2.6 | 1.8 |
M19 | 20 | 30 | 2.2 | 2.6 | 1.8 |
M20 | 21 | 30 | 2.15 | 2.8 | 1.8 |
M22 | 23 | 33 | 2.3 | 3 | 1.8 |
M24 | 25.6 | 36 | 2.35 | 3.1 | 2 |
M25 | 27 | 37 | 2.85 | 3.6 | 2.5 |
M27 | 28.6 | 39 | 2.85 | 3.6 | 2.5 |
M30 | 31.6 | 45 | 3.1 | 4.1 | 2.5 |
M36 | 38 | 54 | 3.7 | 4.7 | 3 |
